The new Adobe 100 Hooper campus is an addition to the company’s current historic facility located a few blocks away. The key project goal was to expand Adobe’s presence and operations in San Francisco’s Design District and promote an urban campus feel. The building’s design supports employees’ needs and reaches beyond the typical and boring desk set-up.
Being constructed from a cold shell, the new Adobe office building now covers:
Two lobbies and four floors of workspace
A dining area
A roof deck
Fitness center with meditation rooms and showers
“Media rooms” for those who are into music, games, and virtual reality
A library zone
A kitchen and a café
Multiple meeting rooms of different sizes located throughout the open floor plan
In terms of general BIM coordination, our biggest challenge was to establish the best possible processes unique for the Adobe 100 Hooper project.
Los Angeles International Airport is undoubtedly the engine of the regional economy, being the second busiest airport in the United States. In 2021, the construction of LAX Metro Connector began, aiming to elevate passengers’ experience and reduce the structure’s operational and embodied carbon emission. It’s a multi-phase aviation construction project involving the building of three at-grade light rail transit platforms that will be added to the Metro K Line at Aviation Bl/96th St.
Kilroy Oyster Point Phase I covers almost 660,000 sq. ft. of leasable research and development (R&D) facilities with associated parking spaces and the project's parcel of about 10 acres. Phase I construction consists of three towers offering lab and office areas over four levels of structured parking to the target tenants, which are companies' offices and life sciences focusing on biotech laboratories. The MEP infrastructure is designed for a "flexible" building to feature a 70:30 lab-to-office ratio.
With the LEED platinum certification, Kilroy Oyster Point is a popular destination for technological progress and discovery. The local history, landform, and the sea have impacted the facility's cutting-edge design, promoting energizing environment, wellness, sustainable efforts, and productivity. When working on this compelling commercial real estate project, VEC's most critical challenge was providing accurate budgeting and cost estimation and guaranteeing construction with the least possible clashes.
VEC experts participated in the Kilroy Oyster Point Phase I from 2019 to 2021 providing our reliable electrical BIM & VDC services, including 3D modeling of power, lighting, and fire alarm (FA) systems. During the project, we collaborated closely with Prime Electric as an electrical contractor and Hathaway Dinwiddie as a General Contractor, who also played the BIM facilitator role and managed the entire BIM process.
We collaborated with the design team and other trades during the pre-construction and construction stages. Thanks to such coordination and BIM software, VEC compared 3D modelsof various building systems and identified field conflicts seamlessly before installation. Our team assisted in reviewing and confirming that models were clean, accurate, and created accordingto the design. As a trusted BIM and VDC partner, VEC facilitated the exchange of 3D models by promoting collaborative document sharing.

The Rose Avenue K-5 school reconstruction project covers a two-story building with 23 general-purpose classrooms, 4 kindergarten classrooms, 1 kinder-flex, and 2 SDC classrooms. It also features a piano lab, library, makers room, administration offices, multipurpose rooms, playfields, hard courts, and support spaces, covering a total area of 58,347 sq. ft. The project consisted of two phases: Phase-1 required constructing new campus facilities on the existing play fields, and Phase-2 involved demolishing the old campus and building new play areas.

The key objective of this reconstruction was to create an up-to-date learning environment that would meet the Oxnard Union School District’s vision for success. Providing collaborative, reflective, and tech-rich spaces was crucial to support various learning modalities. The goal of this approach was to promote high-level cooperation between students and teachers. Due to the number of agile learning spaces with numerous connections, VEC’s biggest challenge was the development of mechanical and plumbing systems.

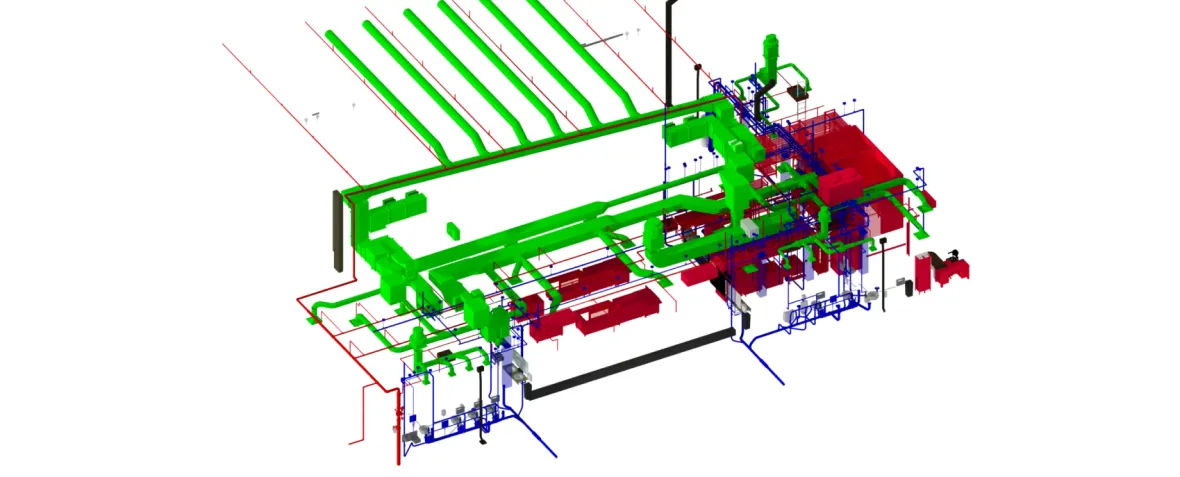

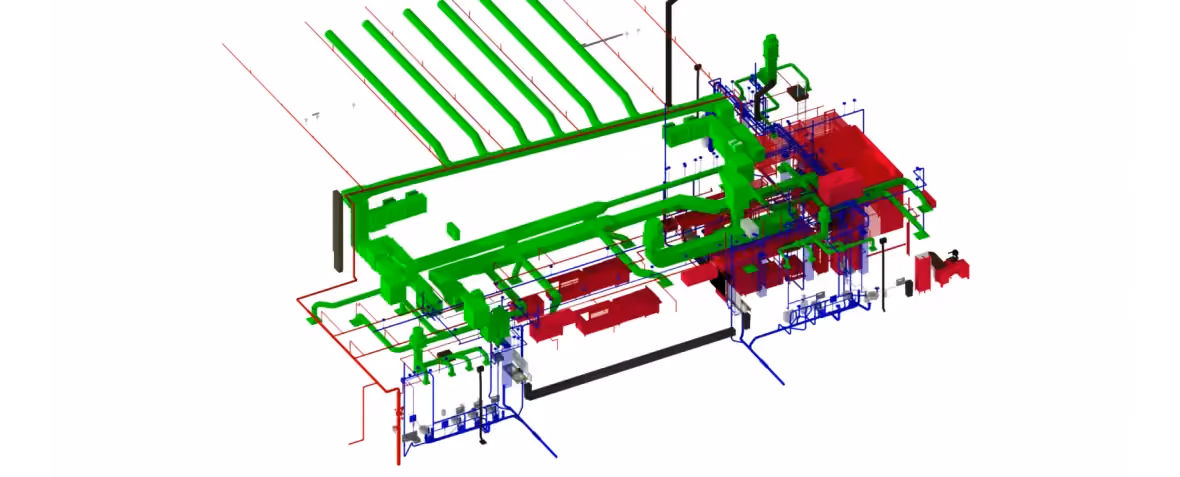

VEC’s experienced team participated in this education campus project from 2021–2022 and provided exceptional mechanical and plumbing BIM & VDC services. Our services included constructability review and routing optimization, prefabrication planning, 3D mech modeling and coordination, and shop and installation drawings development. All trade partners identified and resolved clashes quickly and efficiently thanks to our services.

In addition to creating robust 3D models of mechanical and plumbing systems, VEC’s tech specialists made necessary revisions due to the coordination process and BIM Execution Plan (BEP). Our team also produced well-detailed shop/installation drawings based on the relevant coordination models, which served as the basis of installation for the field team. Our skilled BIM & VDC experts maintained and updated BIM documentation following these changes.

After an initial consultation period to assess their facility management (FM) operations, VEC provided campus-wide as-built and existing conditions mapping and modeling. Once this phase was complete,VEC was engaged to produce a visioning video demonstrating how a common-data structure could be implemented with existing FM systems and databases to build a Virtual Data Center FM program.

Services

Our client’s primary objective was to cater to numerous enterprise partners and customers. When working on this exceptional project, the most significant challenge for VEC experts was to develop robust 3D models of electrical systems along with providing high-level VDC coordination and onsite quality control services to assist the client in improving its business performance and offering digital transformation initiatives for businesses.

With VEC, you are free to choose the services your project requires in any order or package. Over the course of this versatile collocation data centers work, we contributed with:

Electrical BIM & VDC

VEC's professionals played a crucial role in the data center project in 2018—2021  by providing world-class electrical BIM & VDC services, mainly focusing on power, lighting, fire alarm (FA), and telecom system modeling.

We created accurate and detailed as-built native Revit models which were free from unnecessary clutter or extraneous files and included drawing sheetsand linked reference documents. These models encompassed final approvedand validated field changes, specific construction details, and unique client-defined parameters.

VDC Coordination Management

One of the stages of the data centers expansion project involved VEC’s BIM Coordination and Management services for the two-story structure with a steel frame and precast concrete elements, supported by six emergency generators and mechanical and electrical rooms. The abundant sunshine of Silicon Valley fuels the building’s solar collection panels mounted on the roof.

Our skilled BIM & VDC team provided advanced VDC coordination management services, including contract language assistance, creating a well-detailed BIM Execution Plan (BEP) and coordination schedules, along withthe coordination platform setup. VEC directed all the efforts at creating one seamless collaborative space for all the contractors involved.

Onsite Quality Control

The project implies the construction of the data center buildings with a totalof about 411,000 square feet in size on an approximately 18-acre site. The latter will also be enforced by the electrical substation as an additional power source.The building network of this complexity and level of significance demands for the advanced accuracy in evaluating the jobsite to spot and avoid deviationsat the earliest possible.

The VEC team powered the construction crew with our exceptional Onsite Quality Control services. Utilizing drone technology and 3D laser scanning allowed for capturing site conditions in all available dimensions rather thanonly from a ground level observation. Photo and Video documentationof the gathered data in 360° drove the precision in decision making throughoutthe project overall.
The T3W project aims to augment revenue opportunities by extendingthe unique passenger experience in Boarding Area E and Terminal 3 East. All the mentioned improvements to Terminal 3 West will align with the latest building fire safety code, which entails reconfiguring the security checkpoints. For VEC, as an experienced contractor having already delivered successful outcomes for SFO, the biggest challenge was ensuring the proper performance of all electrical systems, mainlysecurity ones.
VEC’s specialists started working on this state-of-the-art aviation building project in 2020. Since then, our professional team has provided outstanding electrical BIM & VDC services that cover 3D modeling of power, lighting, telecom, fire alarm (FA), and security systems.

Our services involved developing a BIM Execution Plan (BEP) that was shared with other project contractors. The relevant approach proved efficient as it facilitated effective management of BIM deliverables, swift detection of clashes, and overall improvement in the coordination process. By utilizing Revit, VEC’s experts generated robust 3D models providing seamless construction coordination among all trades.
Our scope of work at LAX encompassed the design and 3D modeling of the underground utilities across the airport’s 530,000-square-foot terrain. A task of such scale requires immense responsibility in terms of the structure’s safety and long-term functionality.The skilled civil team at VEC gravitates towards ambitious projects as they enable innovation to flourish. With our communities in mind we took on the challenge to “lay grounds” for other construction teams contributing to LAX infrastructure expansion.

KEY OUTPUT

Our general BIM coordination specialists helped all the involved project parties stay focused on creating a constructible model.
VEC brought clear shop drawings and layouts to the general contractor and client.
We cut down the number of RFIs and reduced carbon emissions.
Thanks to detailed, real-time cost data, like schedules, pricing, and quantities, our team estimated and predicted the potential project ROI.
With exceptional general BIM coordination services, VEC contributed to building a modern Adobe 100 Hooper Campus that achieved two key sustainability certifications — LEED-CI v4 and Fitwel,  supporting green building best practices and delivering to employees’ health.

ONSITE AT LAX

At the LAX job site, we stick to our detailed shop drawings to ensure the flawless installation of prefabricated materials. With VEC, LAX will get its infrastructure expanded with the best design and the accessibility of critical construction information.

The client’s expectations are VEC’s guiding light towards the project's successful completion. During the LAX expansion, we aimed at exceeding the results on set goals, as involving BIM and VDC technology in a project this demanding in terms of scale and safety standards was a venture for our client.
Acknowledging our client's trust and confidence in us, the VEC team was dedicated to providing clear and precise 3D models for the airport’s civil underground utilities. Using Revit, VEC BIM & VDC experts created 3D coordination models for each project phase.

3D models are digitally correct spatial and dimensional representations of the future object. Due to its shared ownership, the coordination model facilitates the overall project management and ensures the discovery of conflicts prior to issuing final construction drawings. Being able to walk the job site provided the VEC crue with invaluable insight into the other project trades bringing our virtual models to life in the field.

KEY OUTPUT

Having the responsibility to lay the foundation for the whole structure’s operation, VEC needed to be able to detect clashes and conflicts at the early stages of the project to then solve them within a reasonable timeframe. There is no greater assistant with such a goal as BIM & VDC technology that allowed us to:
Design a complex system of underground utilities for LAX Metro Connector, maintaining a high accuracy of pricing throughout the project;
Exceed our client’s expectations, creating the project’s coordination ecosystem that invited for entrusting us with more scopes of work;
Reduce the number and magnitude of issues that distract from project’s momentum;
Provide seamless functionality of the Metro Connector’s critical systems ensuring enjoyable airport’s passengers’ and staff experience.
Alongside being highly operational and aimed at facilitating passengers’ trip, Los Angeles International Airport Metro Connector is also a fascinating travel maze including Automated People Mover, bus plaza, bicycle and Metro Hub. The VEC team is proud to have contributed to the design of the core underground utilities of the central aviation construction project.

No items found.
No items found.

KEY OUTPUT

The VEC team contributed to this bayfront area project with our first-class electrical modeling services, covering a state-of-the-art life science campus with commercial office spaces and a pleasant marine environment. We achieved all project goals and addressed crucial emerging concerns.
VEC created high-quality models of mechanical systems using Revit software and shared them with other stakeholders.
Our professional team ensured that all connections between plumbing, mechanical, and other systems were completed accurately.
By guaranteeing the appropriate alignment, we contributed to the effective installation process and eliminated inaccurate testing practices.

Key output

With our top-notch BIM & VDC services, VEC contributed to constructing modern data center facilities, helping our confidential client target LEED Silver certification by creating energy-efficient systems.
Our exceptional 3D modeling services granted the customer to have achieved schedule and cost certainty, improving project deliveryand outcomes.
VEC developed fully clash-detected models to minimize Requests for Information (RFIs) regarding object locations, mitigatingthe deviations effectively.
Closely collaborating with our client, the VEC team created model shop drawings within the relevant timeframes, and met allthe project’s requirements.
VEC’s contribution to the Silicon Valley data center expansion project enabled seamless campus cross-connectivity to other facilities, making it a perfect location for those seeking interconnection with prominent network and cloud service providers.

CUSTOMER VALUE

CUSTOMER VALUE

Thanks to our first-class mechanical and plumbing BIM & VDC services, the Rose Avenue K-5 school reconstruction project aligned with the Oxnard District’s vision and specifications. VEC is proud to have helped build a modern educational campus that supports active learning with technology.
VEC created high-quality models of mechanical systems using Revit software and shared them with other stakeholders.
Our professional team ensured that all connections between plumbing, mechanical, and other systems were completed accurately.
By guaranteeing the appropriate alignment, we contributed to the effective installation process and eliminated inaccurate testing practices.
As a responsible BIM & VDC partner, we keep all our project documentation construction-oriented, well-detailed, and transparent.

VEC thoroughly examined the existing contract language to gain understanding of the BIM standards already applied. Making improvement suggestions relevant to the project, our team enhanced the contract’s effectiveness. Followed by a well-defined BEP and phase specific schedules, Campus Building 22 project secured a solid start.
VEC’s contribution to constructing such a state-of-the-art campus helped our confidential client to maintain its strong connection with the Menlo Park community. With a glass facade structure showing attractive design features like specific staircase connections and a long skylight, the facility became a landmark in the neighborhood.
VEC, as a first-class BIM & VDC provider, became a crucial part of the construction of this modern commercial office building with an enormous parking garage.
By correctly modeling power and lighting systems, our team made it easier for installers to build them on-site, ensuring time and money savings.
Being involved in this campus building project, our specialists assisted the general contractor and other trades to construct an energy-efficient facility representing the client’s innovative practices and sustainability efforts.
